CORONA GENERATORS

CORONA GENERATORS

Systems with user-friendly sophistication

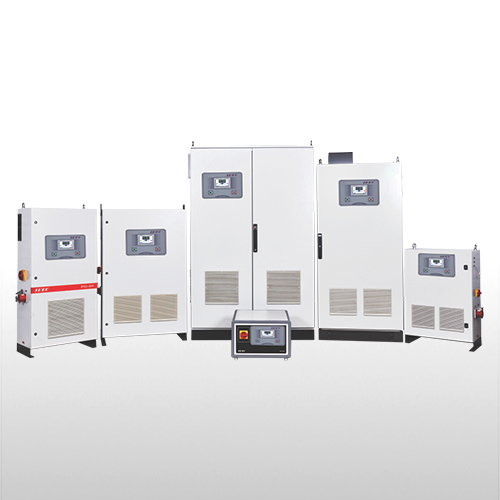

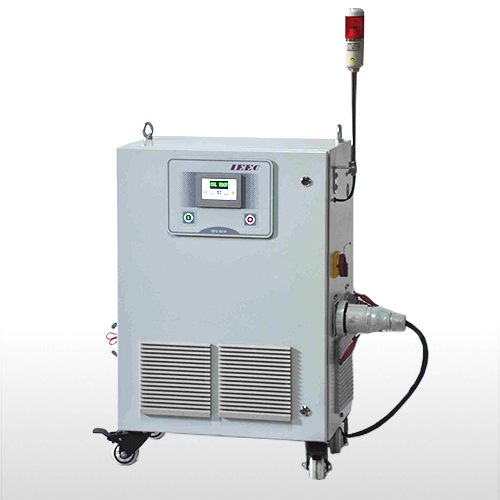

IEEC Corona Generators are CE Standard Generators engineered with perfection and sophistication. User-friendly and easy-to-operate, these highly efficient generators provide better treatment at lesser power. They are packed with the most advanced features including Latest Mixed Signal Microcontroller Programming, High Frequency which makes it long-lasting and maintenance-free, and Frequency Auto-tuning which makes it compatible with any assembly and operable at optimum required power.

Key features include:
  • Latest IGBT Technology and PWM Self Tuning Techniques for efficient output
  • Efficient Modulation and Frequency Circuits
  • MMI (Man-Machine Interface for easy operation)
  • AUTOWATT DENSITY CONTROL(To control power w.r.t speed)
  • DISPLAY: LCD 2 X 16 (For RFG1, RFG2), LCD 4 X 40 (For RFG3, RFG4, RFG5), touchscreen
  • Buzzer Alarm
  • Fault Indication
  • Frequency Auto-Tuning
  • Air Conditioner (Optional)
  • Heavy Duty Plug In/Out Connectors
  • Corrosion Proof Paint
  • Auto- Watt Density Control
  • Inch Mode
  • Pulse Block / Zero Speed Trip Mode
  • MMI (Man-Machine Interface for easy operation)
RFG 1 0.5KW, 1KW, 1.5KW, 2KW
RFG 2 03KW, 04KW
RFG 3 06KW, 08KW
RFG 4 12KW, 16KW
RFG 5 60KW
Input Voltage 415V AC ± 10%
Input Frequency 50 Hz, 60 Hz
Output Power Range 0.5 KW to 60 KW
Output Frequency 10 KHz – 50 KHz
Output DC Voltage steady 400V- 600V
  • UV/OV Trip
  • IGBT Fail Trip
  • Electronic Overload Trip
  • Assembly Open Trip
  • Negative Pressure Trip
  • Thermal Trip
  • Off-Tune Trip
  • Blower OL Trip
  • Link Voltage Less Trip
